timescaledb-kubernetes

TimescaleDB Single

Introduction
Installing
- Installing from the Timescale Helm Repo
Connecting to TimescaleDBs
- Connecting from inside the Cluster
Create backups to S3
Cleanup
Further reading

Introduction

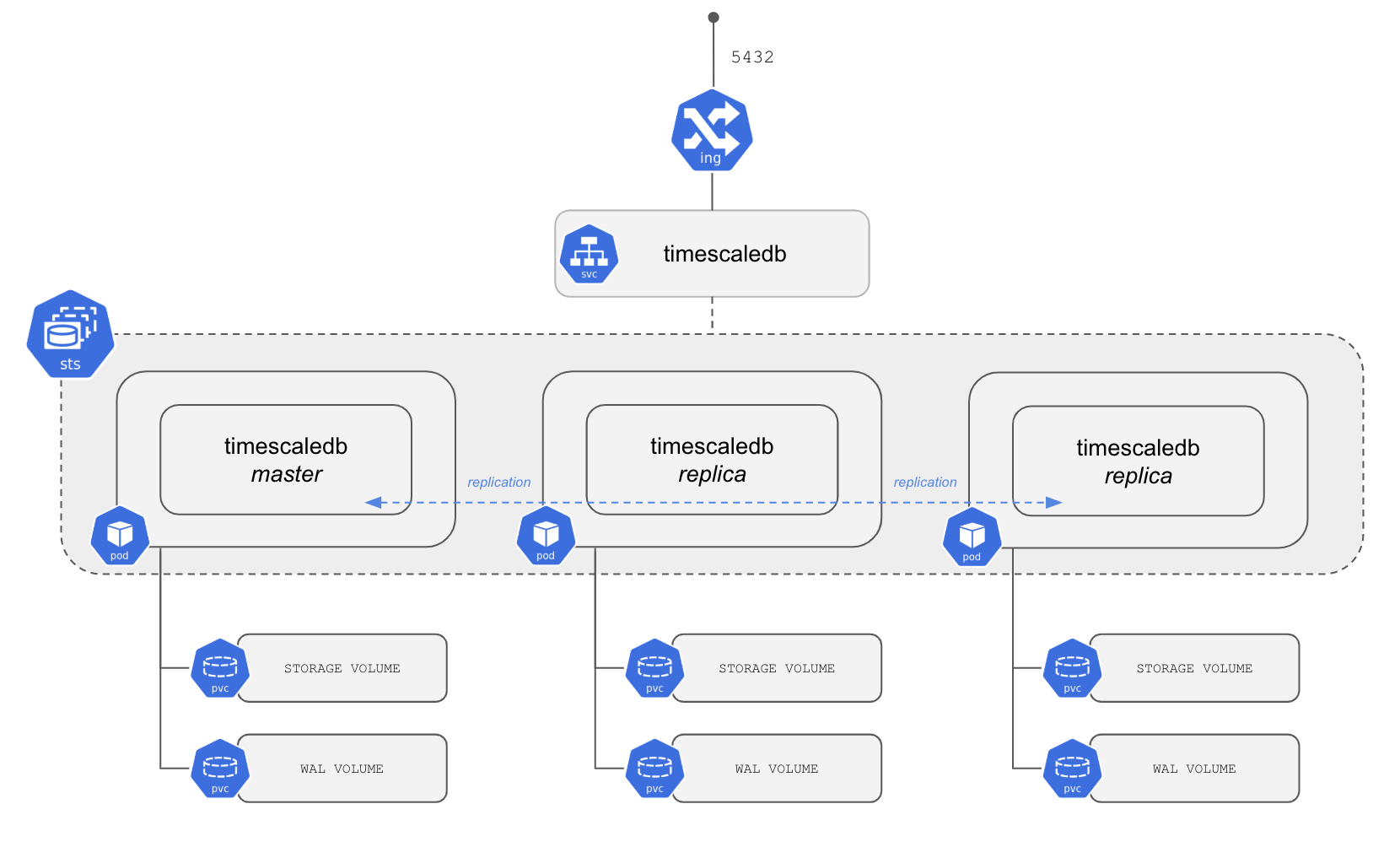

This directory contains a Helm chart to deploy a three node TimescaleDB cluster in a High Availability (HA) configuration on Kubernetes. This chart will do the following:

Creates three (by default) pods using a Kubernetes StatefulSet.
Each pod has a container created using the TimescaleDB Docker image.
- TimescaleDB 1.7 and PG 12
Each of the containers runs a TimescaleDB instance and Patroni agent.
Each TimescaleDB instance is configured for replication (1 Master + 2 Replicas).

When deploying on AWS EKS:

The pods will be scheduled on nodes which run in different Availability Zones (AZs).
An AWS Elastic Load Balancer (ELB) is configured to handle routing incoming traffic to the Master pod.

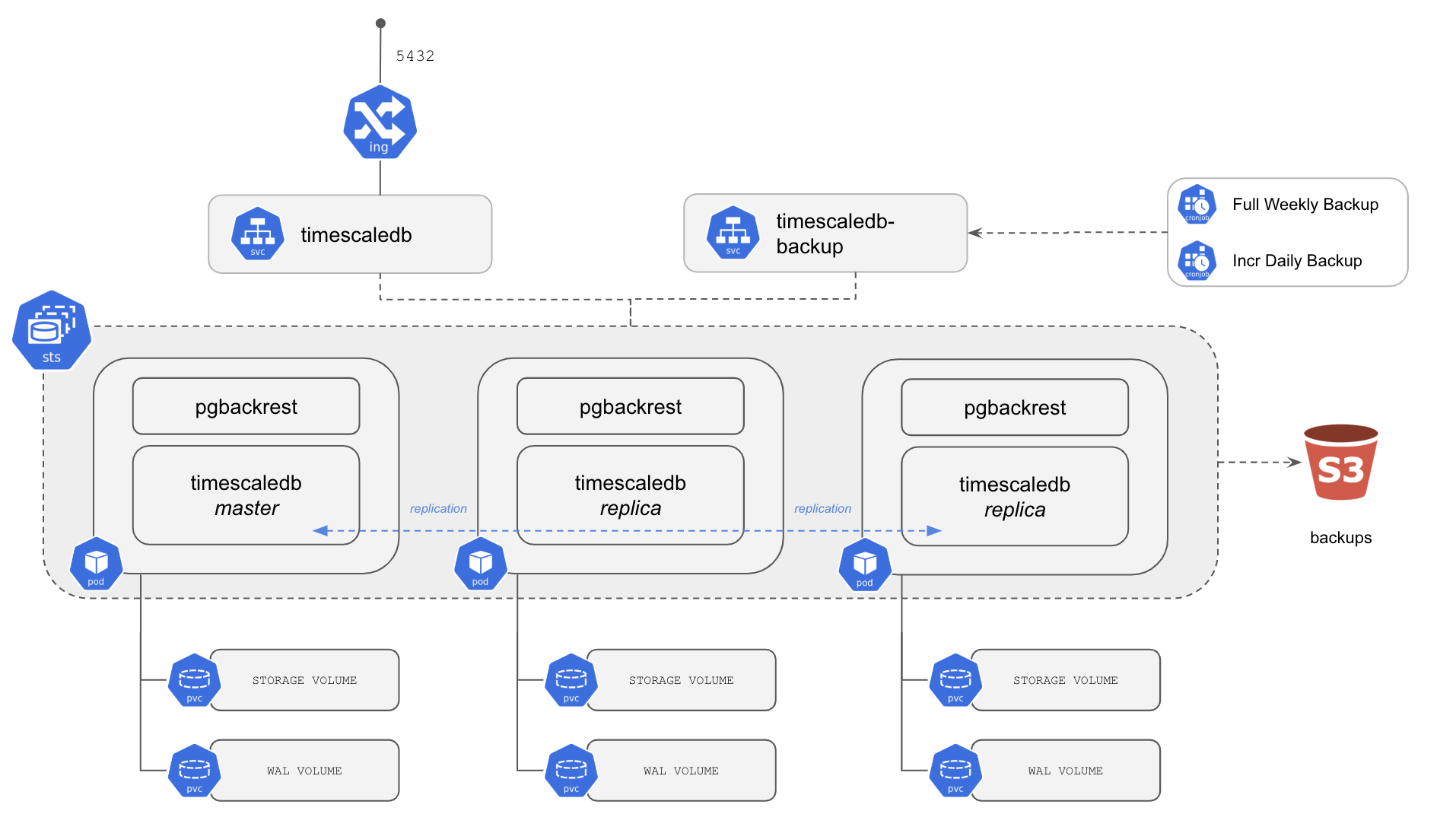

When configured for Backups to S3:

Each pod will also include a container running pgBackRest.
By default, two CronJobs are created to handle full weekly and incremental daily backups.
The backups are stored to an S3 bucket.

Installing

To install the chart with the release name my-release, first you need to create a set of Kubernetes Secret objects that will contain:

The credentials for the superuser, admin and stand-by users
TLS Certificates
pgbackrest config (optional)

This repo has a simple script that uses Kustomize to help you with this (See the Administration Guide for more details):

./generate_kustomization.sh my-release

Then you can install the chart with:

helm install --name my-release charts/timescaledb-single

You can override parameters using the --set key=value[,key=value] argument to helm install, e.g., to install the chart with backup enabled:

helm install --name my-release charts/timescaledb-single --set backup.enabled=true

Alternatively, a YAML file that specifies the values for the parameters can be provided while installing the chart. For example,

helm install --name my-release -f myvalues.yaml charts/timescaledb-single

For details about what parameters you can set, have a look at the Administrator Guide

Installing from the Timescale Helm Repo

We have a Helm Repository that you can use, instead of cloning this Git repo.

First add the repository with:

helm repo add timescale 'https://charts.timescale.com'

NOTICE: Before installing the chart, you need to make sure that the required Kubernetes Secrets are created. You can do this with our helper script. Look at the Administrator Guide for more details.

The fastest way is to use the helper script packed with the chart itself.

First pull the chart and unpack it:

helm pull timescale/timescaledb-single --untar

Then run the generate_kustomization.sh script:
```
cd ./timescaledb-single
bash ./generate_kustomization.sh my_release
```
The script will generate configuration for
- strong random passwords for the database
- a self-signed SSL certificate (for demo and dev purposes)
- backup (if enabled)
It will prompt if you want it install the secrets directly, or print out how to do it after (p)reviewing the generated files.
And install the chart:
```
helm install --name my-release .
```

To keep the repo up to date with new versions you can do:

helm repo update

Connecting to TimescaleDBs

To connect to the TimescaleDB instance, we first need to know to which host we need to connect. Use kubectl to get that information:

kubectl get service/my-release

NAME         TYPE           CLUSTER-IP       EXTERNAL-IP                 PORT(S)          AGE
my-release   LoadBalancer   10.100.149.189    verylongname.example.com   5432:31294/TCP   27s

Using the External IP for the service (which will route through the LoadBalancer to the Master), you can connect via psql using the superuser postgres by:

decoding the password you generated with kustomize

PGPOSTGRESPASSWORD=$(kubectl get secret --namespace default my-release-credentials -o jsonpath="{.data.PATRONI_SUPERUSER_PASSWORD}" | base64 --decode)

Connecting with psql

PGPASSWORD=$PGPOSTGRESPASSWORD psql -h verylongname.example.com -U postgres

NOTICE: You may have to wait a few minutes before you can resolve the DNS record

From here, you can start creating users and databases, for example, using the above psql session:

CREATE USER example WITH PASSWORD 'thisIsInsecure';
CREATE DATABASE example OWNER example;

Connect to the example database with the example user:

psql -h verylongname.example.com -U example -d example

This should get you into the example database, from here on you can follow our TimescaleDB > Getting Started to create hypertables and start using TimescaleDB.

Connecting from inside the Cluster

To access the database from inside the cluster, you can run psql inside the Pod containing the primary:

RELEASE=my-release
kubectl exec -ti $(kubectl get pod -o name -l role=master,release=$RELEASE) psql

Create backups to S3

The backup is disabled by default, look at the Administrator Guide on how to configure backup location, credentials, schedules, etc.

Cleanup

To remove the spawned pods you can run a simple

helm delete my-release

Some items, (pvc’s and S3 backups for example) are not immediately removed. To also purge these items, have a look at the Administrator Guide
